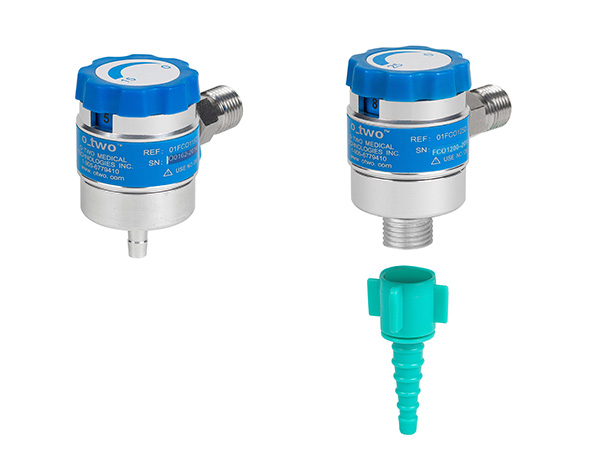

  • Single Outlet Therapy Flow Controller

    therapy-flow-controllers-with-green-fir-tree-4-x-3-150-dpi-copy

    Oxygen Therapy Treatment for Single Patient Incidents

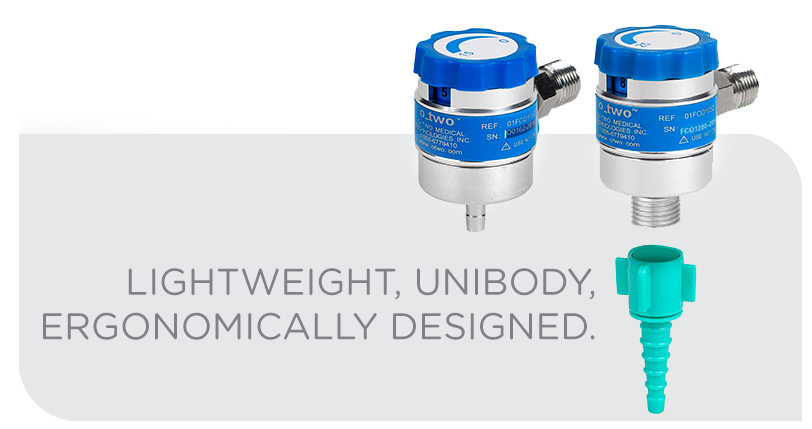

    When you need to provide oxygen therapy the O-Two Adjustable Oxygen Therapy Flow Controller provides high quality manufacturing and performance. The O-Two Adjustable Oxygen Therapy Flow Controller is a calibrated, 12 position, fixed orifice, non-gravity sensitive flow controller. The Flow Controller is available in a complete range of Chemetron, Ohio, Female Swivel DISS or 1/8" female pipe inlet connections and DISS fitting valve outlet connections. The Flow Controller is a lightweight, unibody, ergonomically designed assembly. Ideal for all applications where adjustable oxygen therapy is to be provided, the O-Two Adjustable Oxygen Therapy Flow Controller is unbeatable for quality, size and performance!

    Features:

    • Outstanding Impact Resistant
    • All Metal Construction
    • Large Viewing Window
    • Ribbed Control Knob
    • 12 “Click Stop” Positions

    Specifications

    Therapy Flow Settings : 0, 0.5, 1, 2, 3, 4, 5, 6, 8, 10, 12, 15 (+/- 10%)
    Therapy Flow Settings : 0, 1, 2, 3, 4, 6, 8, 10, 12, 15, 20, 25 (+/- 10%)
    Maximum Rated Input Pressure: 50 psi
    Operating Temperature Range 0oC to +50oC
    Storage Temperature Range:  0oC to +60oC
    Size (approx): H 2.0” x W 1.37” (excluding outlet and inlet fitting)
    Weight (approx): 4.0 oz

    Part Number and Product Description

    01FC0115D
    Oxygen Therapy Flow Controller: 0-15 L/min with 12 settings (Various inlet fittings available. Please specify at time of ordering)..
    01FC0125D Oxygen Therapy Flow Controller: 0-25 L/min with 12 settings (Various inlet fittings available. Please specify at time of ordering)..


    							 Download PDF Spec. Sheet



O-Two Medical Technologies Inc. reserves the right to change, modify, or update the product specifications, product data and product information contained herein at any time without prior notice.
