eSeries Ventilator, e500, e600, e700

eSeries Ventilators

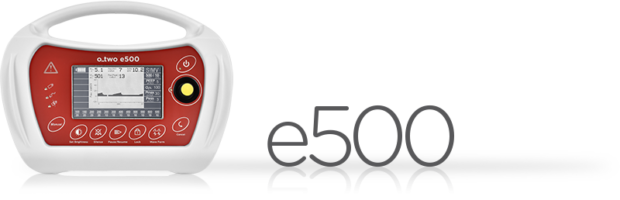

The e500 and e700 ventilators, providing flexibility in your choice of functionality and application!

The e500 and e700 ventilators usher in a new era in controlled ventilation for resuscitation and patient transport! These electronically controlled, pneumatically powered ventilators provide a range of ventilation solutions for all types of patient requirements and all levels of pre-hospital and in-hospital healthcare professionals.

Simplicity
The range of ventilation solutions offered by these devices cannot be compared to any other products of their type. With “Easily Changeable”, long lasting (18-24h) battery pack the units are self-contained and only require attachment to a regulated oxygen supply and a transport ventilator circuit for immediate use. The easily replaceable battery can be charged while inside the ventilator or can be removed for charging and quickly replaced by a fresh battery pack. The display lighting has both day and night modes for easy visualization of the ventilator settings in any ambient light conditions. Designed for a range of patient sizes (from large adult to infant), all three models come in a very small and lightweight package.

Controllability
The standardized controls on all three models provide an ease of use concept that is second to none. There are no multiple screens to scroll through to establish patient ventilation parameters. The units have an initial, pre-set, start-up mode requiring only the selection of patient size to begin ventilation. These products are designed to speed up and simplify even the most complex ventilation set up.

Functionality
The simplicity of operation masks the level of sophistication these products offer. The e500 model provides ventilation for both resuscitation and transport with the minimum of control adjustments required for simple patient set up. The range of ventilation modes offered by the full featured e700 models provide “ICU level” patient care while maintaining the ease of operation for all patient care and transport situations in the pre-hospital and in-hospital setting. The inclusion of ventilation modes for “mask or protected airway CPR”, with visual and audible prompts, adds another dimension to the application for these products not found on other ventilators.

Safety
Continuous parameter monitoring and self adjustment in all three models ensures that the device is always fully functional and ready for immediate use. The wide range of both visual and audible alarms provides the healthcare professional with warnings of any changes in patient or device parameters.

Economy:

In addition to the patient care benefits the “e” series of ventilators provide excellent low gas consumption and long battery operating time. This assists in providing controlled ventilation to the patient over an extended period. The “e” series of ventilators are ideal for long transports where both electrical and oxygen supplies are always a critical concern.

All of this, and more, is provided at an exceptional price!

eSeries e700

Specifications

[read more="Click here for Specifications" less="Read less"]

Power Source	Compressed Oxygen
Circuit Control Source	Electric
Ventilation modes	Quick Start Mode, A/C (VCV,PCV), SIMV w/PSV, CPAP w/PSV, BiLVL w/PSV, Mask CPR (MCPR), Intubated CPR (ICPR) Adult/Child/Infant, Intuitive Patient Apnea Backup (IPAB)
Patient Size Range	6 Kg to Large Adult
Ventilation Frequency	5 - 60
Minute Volume (L)	Calculated
Tidal Volume (ml)	50 - 2000
Quick Start Mode Default VT/BPM	Adult 500/10 Child 250/15, Infant 100/20
Manually triggered Ventilation	Yes
I:E Ratio	Adjustable (1:4 to 3:1)
PEEP (cm H2O)	Adjustable 0 - 20
CPAP (cm H2O)	Adjustable 4 - 20
O2 (%) (FiO2)	60 or 100 (0.6 - 1.0)
Pmax (cm H2O)	10 - 80
Pmin (cm H2O)	0 - 20
PSV (cm H2O)	4 - 40
PCV (cm H2O)	4 - 50
Ti (sec.)	0.14 - 9.0
Trigger sensitivity (L/min)	3 - 15
Inhalation Pressure (cm H2O)	4 - 50
Pressure Support Termination	20% - 80% of max. flow
Apnea back up time (sec.)	Adjustable 10 - 60
Battery Operating time	18 hours for default settings
Built-in Battery charger	Yes
A/C power adapter	100-240VAC/ 19VDC, 4.74A
Patient circuit	O-Two electronic ventilator circuit
Mounting Bracket	Multi-configuration bracket
Display Type	4.3" Color TFT Screen
Live monitoring	Vm, vt, Paw (AV), PAW (Peak), F, BPM, Battery level
Real time waveform	Selectable Pressure or Flow
Set Display Brightness Control	Yes
Parameter settings	Single, Multi Function Rotary Control
Lock key function	Yes
Pause function	Yes
Alarms (Visual and Audible):	Gas Supply Pressure, Pmax, Pmin, Low Battery, BCI, Apnea, Leak, Vm min., Vm max.
Audible silence	Yes, 120 seconds
Temperature Range:	Operating -18oC to +50oC, Rh: 15% to 95%
	Storage -40oC to +60oC, Rh: 15% to 95%
Dimensions (mm)	250 x 200 x 155
Weight (Kg) with/without Battery	2.4 / 1.77
Weight (Lbs) with/without Battery	5.29 / 3.9

[/read]

Ordering Information

[read more="Click here for Ordering Information" less="Read less"]

01EVE700	e700 - Electronic Automatic Transport Ventilator c/w Disposable Patient Circuit, Resuscitation Mask, 6 Foot Supply Hose*, Calibrated Test Lung and Power Supply (Specify Country of Use)	Each
01CV8030-CS	O-Two Medical Single-Use Electronic Transport Ventilator 6 Foot Circuit with Protective Sleeve. For e500, e600 and e700	Case/10
01CV7035	O-Two Medical “e” Series Ventilator “Smart Mount” Multi-configuration Mounting Bracket (Ambulance Cot, Hospital Stretcher, Bed, Roll Stand)	Each
01CV8040-CS	O-Two Medical “e” Series Ventilator Replacement Intake Filter/Cover	Case/10
01TA1852	O-Two Medical “e” Series Ventilator Replacement 1 Litre Test Lung with Compliance Restrictor	Each
01FV4303-DISS	O-Two 6 Foot (1.85 Meter) O2 Supply Hose with 9/16 DISS Nut and 9/16” DISS Nut Ventilator Connection	Each
01CV9100	O-Two Medical “e” Series Replacement Lithium Ion Replacement Battery	Each
01CV0105	Power Supply - eSeries	Each
01CV0106	Power supply cord for eSeries power supply	Each
01CV0102-EU	Power supply cord for eSeries power supply	Each
01CV7050	eSeries Automatic Transport Ventilator Carrying Case – With sling-style shoulder strap (specifically designed for eSeries)	Each
01TA7650	Leak test kit for e-vents	Each

[/read]

Resources

Download PDF Spec. Sheet
