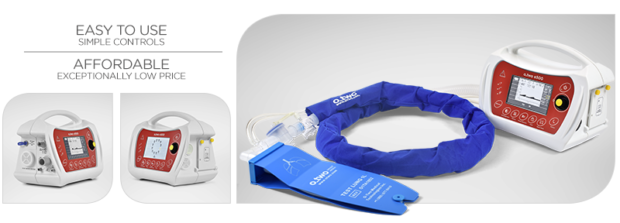

eSeries e500
Specifications
[read more=”Click here for Specifications” less=”Read less”]
| Power Source | Compressed Oxygen |
| Circuit Control Source | Electric |
| Ventilation modes | SIMV, CPAP, Mask CPR and Intubated CPR |
| Patient Size Range | 15 Kg to large Adult |
| Ventilation Frequency/ Tidal Volume (f/ml) |
12 preset Vt/BPM settings 100/20 to 650/10 |
| Quick Start Mode Default VT/BPM | 500/10 |
| Manually triggered Ventilation | Yes |
| I:E Ratio | 1:2 |
| PEEP (cm H2O) | Adjustable 0 – 20 |
| CPAP (cm H2O) | Adjustable 4 – 20 |
| O2 (%) (FiO2) | 60 or 100 (0.6 – 1.0) |
| Pmax (cm H2O) | 10 – 80 |
| Pmin (cm H2O) | 0 – 20 |
| Trigger sensitivity (L/min) | 3 |
| Apnea back up time (sec.) | Adjustable 10 – 60 |
| Battery Operating time | 18 hours for default settings |
| Built-in Battery charger | Yes |
| A/C power adapter | 100-240VAC/ 19VDC, 4.74A |
| Patient circuit | O-Two electronic ventilator circuit |
| Mounting Bracket | Multi-configuration bracket |
| Display Type | 4.3″ Color TFT Screen |
| Live monitoring | Vm, vt, Paw (AV), PAW (Peak), F, BPM, Battery level |
| Real time waveform | Selectable Pressure or Flow |
| Set Display Brightness Control | Yes |
| Parameter settings | Single, Multi Function Rotary Control |
| Lock key function | Yes |
| Pause function | Yes |
| Alarms (Visual and Audible): | Gas Supply Pressure, Pmax, Pmin, Low Battery, BCI, Apnea, Leak, Vm min., Vm max. |
| Audible silence | Yes, 120 seconds |
| Temperature Range: | Operating -18oC to +50oC, Rh: 15% to 95% |
| Storage -40oC to +60oC, Rh: 15% to 95% | |
| Dimensions (mm) | 250 x 200 x 155 |
| Weight (Kg) with/without Battery | 2.4 / 1.70 |
| Weight (Lbs) with/without Battery | 5.29 / 3.9 |
[/read]
Ordering Information
[read more=”Click here for Ordering Information” less=”Read less”]
| 01EVE500 | e500 – Electronic Automatic Transport Ventilator c/w Disposable Patient Circuit, Resuscitation Mask, 6 Foot Supply Hose*, Calibrated Test Lung and Power Supply (Specify Country of Use) |
EACH |
| 01CV8030-CS | O-Two Medical Single-Use Electronic Transport Ventilator 6 Foot Circuit with Protective Sleeve. For e500, e600 and e700 |
Case/10 |
| 01CV7035 | O-Two Medical “e” Series Ventilator “Smart Mount” Multi-configuration Mounting Bracket (Ambulance Cot, Hospital Stretcher, Bed, Roll Stand) |
Each |
| 01CV8040-CS | O-Two Medical “e” Series Ventilator Replacement Intake Filter/Cover |
Case/10 |
| 01TA1852 | O-Two Medical “e” Series Ventilator Replacement 1 Litre Test Lung with Compliance Restrictor |
Each |
| 01FV4303-DISS | O-Two 6 Foot (1.85 Meter) O2 Supply Hose with 9/16 DISS Nut and 9/16” DISS Nut Ventilator Connection |
Each |
| 01CV9100 | O-Two Medical “e” Series Replacement Lithium Ion Replacement Battery |
Each |
| 01CV0105 | Power Supply – eSeries | Each |
| 01CV0106 | Power supply cord for eSeries power supply | Each |
| 01CV0102-EU | Power supply cord for eSeries power supply | Each |
| 01CV7050 | eSeries Automatic Transport Ventilator Carrying Case – With sling-style shoulder strap (specifically designed for eSeries) |
Each |
| 01TA7650 | Leak test kit for e-vents | Each |
[/read]
Resources
O-Two Medical Technologies Inc. reserves the right to change, modify, or update the product specifications, product data and product information contained herein at any time without prior notice.
