Automatic Pneumatic Ventilators

CAREvent® Ventilators

The CAREvent® Automatic Transport Ventilators are lightweight, portable, durable and simple to use, control module style, automatic time/volume cycled ventilators. They are completely pneumatic (no batteries required) and deliver breath by breath consistency in delivered tidal volume, frequency, inspiratory/expiratory times and flow rates. This consistency is not achievable with a bag-valve-mask resuscitator and prevents gastric inflation and high intrathoracic pressure.

Designed primarily for the demands of emergency rescue, resuscitation and critical care patient transports, the CAREvent® ventilators provide functionality normally only found in high end electronic ventilators.

Four models are available to meet the various functionality and budgetary needs. Features available include:

  • “Demand Breathing” for the spontaneously breathing patient
  • Manual Override Ventilation to supplement automatic ventilations if required and activate delayed cycling when a 30:2 CPR protocol is being performed.
  • Flexibility in breath volume and frequency delivery to ventilate patients from 5 kg. to large adults (note ALS+ suitable for patients from 15 kg.)
  • CPAP to provide non-invasive treatment for patients with CHF, COPD and PE. This provides one space saving device for oxygen therapy, CPAP treatment, resuscitation and ventilation (ALS+, ATV+ and MRI).
  • Auto Cycling Shut-Off and Re-Start to synchronized ventilation for patients moving in and out of respiratory arrest. Note: In the child settings the inspired flow rate of the patient may be insufficient to cause the Automatic Circuit Shut off to function.
  • Airway Pressure Gauge to provide visual monitoring of the patient and ventilator settings.
  • An Audible and Visual Low Gas Supply Warning.
  • Audible and Visual Indicator for a circuit disconnect or when delivered tidal volumes are insufficient (ATV+ and MRI)

Resources

Download PDF Spec. Sheet
  • CAREvent® ATV+

    Specifications

    [read more="Click here for Specifications" less="Read less"]

    MINUTE VOLUME:2 - 14 litres
    BREATHS PER MINUTE:8 - 40
    I:E RATIO:1:2
    AUTOMATIC FLOW RATE:6 - 42 L/min
    MANUAL FLOW RATE:As per selected setting
    DEMAND FLOWRATE:>100 L/min
    DEMAND TRIGGERING PRESSURE:-2 cm H20
    MINIMUM INPUT PRESSURE:45 PSI
    MAXIMUM INPUT PRESSURE:87 PSI
    MAX . AIRWAY PRESSURE:60 cm H2O
    OXYGEN CONCENTRATION:60 or 100%
    ADJUSTABLE AIRWAY PRESSURE RANGE:20 - 60 cm H2O
    OPERATING TEMPERATURE:-18°C to +50°C
    0°F to +122°F
    STORAGE TEMPERATURE:-40°C to +60°C
    -40°F to + 140°F
    PATIENT CONNECTION:9/16" DISS
    PATIENT VALVE DEADSPACE:8 ml
    GAS SUPPLY STATUS INDICATOR:VISUAL
    CIRCUIT DISCONNECT ALARM:PULSED AUDIBLE, AND VISUAL. ALARM SILENCE CONTROL - 15 SECONDS
    LOW INPUT PRESSURE ALARM:PULSED VISUAL and AUDIBLE

    (All specifications are subject to a tolerance of +/- 10%
    except the I:E Ratio which is subject to a tolerance of +/- 20 %)

    [/read]

    Ordering Information

    [read more="Click here for Ordering Information" less="Read less"]

    01CV6000CAREvent® ATV+ Automatic Transport Ventilator c/w Adjustable
    20 - 60 cm H2O Pressure Relief System, Low Pressure Visual
    and Audible Alarms, Air Mix, Adjustable CPAP/PEEP,
    Breathing System Integrity (BSI) Alarm, 6’ Supply Hose*,
    Deluxe Disposable Ventilation Circuit, Calibrated
    Test Lung and Universal Resuscitation Mask
    Each
    01CV8015-CSO-Two Deluxe Disposable Ventilation Circuit with PEEP Port -
    (for use with ALS, ALS+, ATV+, MRI Compatible Ventilators)
    Case/10
    01CV8016-CSO-Two CAREvent® MRI Ventilation Circuit with PEEP Port and 10 Foot HoseCase/10
    01CV8010-CSO-Two Disposable Ventilation Circuit without PEEP Port
    (for use with EMT)
    Case/10
    10-55330-CSDisposable PEEP Valve 5 - 20 cmH2OCase/10
    17MP8690-CSAir Intake Filter and Cover for CAREvent® ATV,
    ATV+, MRI Compatible Ventilators
    Case/10
    01CV8025O-Two CAREvent® Reusable valve with PEEP Port for ATV, ATV+ and MRIEach
    01CV7030CAREvent® ATV+ / MRI Ambulance Mounting BracketEach
    01TA1851Replacement Calibrated Test Lung
    c/w Compliance Band and Airway restrictor
    Each

    [/read]

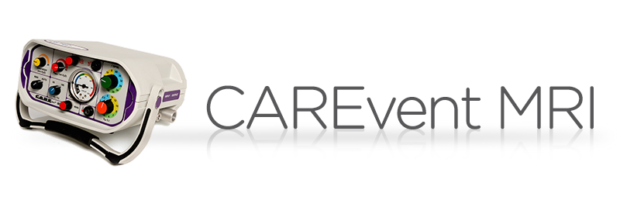

  • CAREvent® MRI

    Specifications

    [read more="Click here for Specifications" less="Read less"]

    MINUTE VOLUME:2 - 14 litres
    BREATHS PER MINUTE:8 - 40
    I:E RATIO:1:2
    AUTOMATIC FLOW RATE:6 - 42 L/min
    MANUAL FLOW RATE:As per selected setting
    DEMAND FLOWRATE:< 100 L/min
    DEMAND TRIGGERING PRESSURE:-2 cm H20
    MINIMUM INPUT PRESSURE:45 PSI
    MAXIMUM INPUT PRESSURE:87 PSI
    MAX . AIRWAY PRESSURE:60 cm H2O
    OXYGEN CONCENTRATION:60 or 100%
    ADJUSTABLE AIRWAY PRESSURE RANGE:20 - 60 cm H2O
    OPERATING TEMPERATURE:-18°C to +50°C
    0°F to +122°F
    STORAGE TEMPERATURE:-40°C to +60°C
    -40°F to + 140°F
    MRI CONDITIONALUp to 3.0 Tesla
    PATIENT CONNECTION:9/16" DISS
    PATIENT VALVE DEADSPACE:8 ml
    GAS SUPPLY STATUS INDICATOR:VISUAL
    CIRCUIT DISCONNECT ALARM:PULSED AUDIBLE, AND VISUAL.
    ALARM SILENCE CONTROL - 15 SECONDS
    LOW INPUT PRESSURE ALARM:PULSED VISUAL and AUDIBLE

    (All specifications are subject to a tolerance of +/- 10%
    except the I:E Ratio which is subject to a tolerance of +/- 20%)

    [/read]

    Ordering Information

    [read more="Click here for Ordering Information" less="Read less"]

    01CV7000CAREvent® MRI Conditional Transport Ventilator c/w Adjustable
    20 - 60 cm H2O Pressure Relief System, Low Pressure Visual and
    Audible Alarm, Air Mix, Adjustable CPAP/PEEP, Breathing System
    Integrity (BSI) Alarm, 6’ Supply Hose*, Deluxe Disposable
    Ventilation Circuit, Calibrated Test Lung & Universal Mask
    Each
    01CV8015-CSO-Two Deluxe Disposable Ventilation Circuit with PEEP Port
    (for use with ALS, ALS+, ATV+, MRI Compatible Ventilators)
    Case/10
    01CV8016-CSO-Two CAREvent® MRI Ventilation Circuit
    with PEEP Port and 10 Foot Hose
    Case/10
    01CV8010-CSO-Two Disposable Ventilation Circuit without PEEP Port
    (for use with EMT)
    Case/10
    10-55330-CSDisposable PEEP Valve 5 - 20 cmH2OCase/10
    17MP8690-CSAir Intake Filter and Cover for CAREvent® ATV, ATV+,
    MRI Compatible Ventilators
    Case/10
    01CV8025O-Two CAREvent® Reusable valve with PEEP Port for ATV, ATV+ and MRIEach
    01CV7030CAREvent® ATV+ / MRI Ambulance Mounting BracketEach
    01TA1851Replacement Calibrated Test Lung c/w Compliance Band and Airway restrictorEach

    [/read]

  • Accessories for CAREvent®

O-Two Medical Technologies Inc. reserves the right to change, modify, or update the product specifications, product data and product information contained herein at any time without prior notice.
