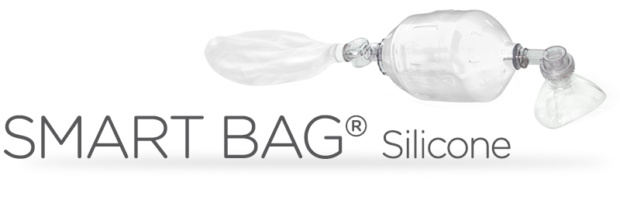

SMART BAG® MO – Reusable
Silicone Autoclavable Bag-Valve-Mask
Improving Ventilation One Breath at a Time
The SMART BAG® MO Silicone Bag-Valve-Mask Resuscitator has been designed for Users who prefer Silicone and its autoclavable features. Provide consistent ventilations while almost completely eliminating the risks associated with conventional BVM ventilation. The unique actuating mechanism hidden inside the neck bushing of the SMART BAG® MO actually responds to the rescuer and the patient.
Features
- Autoclavable Silicone and reusable.
- Available in two models (Adult & Child).
- Transparent Universal Facemask allows for easy monitoring of skin color, signs of vomitus or body fluids.
- Complete with Oxygen Reservoir System.
- Controlled Flowrate.
- Controlled Airway Pressure.
- Controlled Ventilation.
- Reduced Risk of Gastric Insufflation.

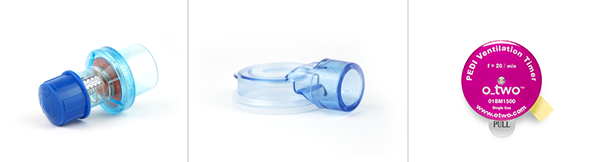

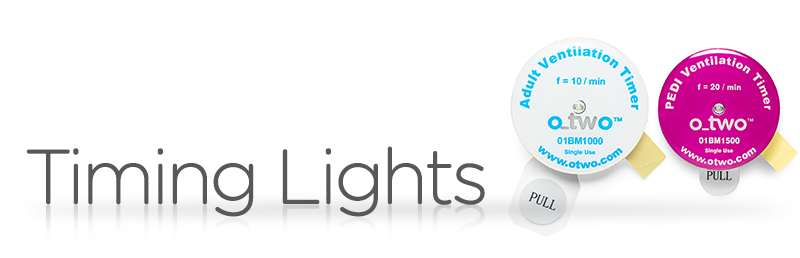

The single-use O-Two Adult and PEDI Ventilation Timing Lights not only provide timing for the initiation of the breath but also indicate the duration of the ventilation by remaining illuminated for the duration of the inspiratory time. This provides safe, slow delivery of the breath. The off phase provides adequate expiration time to avoid breath stacking. Click here for more information.
Specifications
[read more=”Click here for Specifications” less=”Read less”]
| Operating Temperature Range | -18°C to 50°C (0°F to 122°F) |
| Storage Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Inspiratory Resistance | 3.3 cm H2O |
| Expiratory Resistance | 2.2 cm H2O |
| Dead space | 7.0 ml |
| Adult Bag Volume | 1700 ml |
| Child Bag Volume | 470 ml |
| Reservoir Volume | 2700 ml |
(All specifications are subject to a tolerance of +/- 10%.)
[/read]
Ordering Information
[read more=”Click here for Ordering Information” less=”Read less”]
| 01BM3100-MO | Smart Bag® MO w/ manual override control, adult w/ silicone mask, oxygen reservoir system in carton |
Each |
| 01BM3110-MO | Smart Bag® MO w/ manual override control, child w/ silicone mask, oxygen reservoir system in a carton |
Each |
[/read]
O-Two Medical Technologies Inc. reserves the right to change, modify, or update the product specifications, product data and product information contained herein at any time without prior notice.
