The O-Two™ eAdvantage® mixer is groundbreaking. Its ability to deliver the precise amount of gas required for the patient, without any waste or environmental hazards, is unmatched by any other analgesia device on the market. The demand for gas flow is regulated by the spontaneous breath of the patient, thereby preventing any unnecessary gas waste.
The O-Two™ eAdvantage® mixer is groundbreaking. Its ability to deliver the precise amount of gas required for the patient, without any waste or environmental hazards, is unmatched by any other analgesia device on the market. The demand for gas flow is regulated by the spontaneous breath of the patient, thereby preventing any unnecessary gas waste.
Specifically designed for pain relief during emergencies, childbirth, or painful procedures.

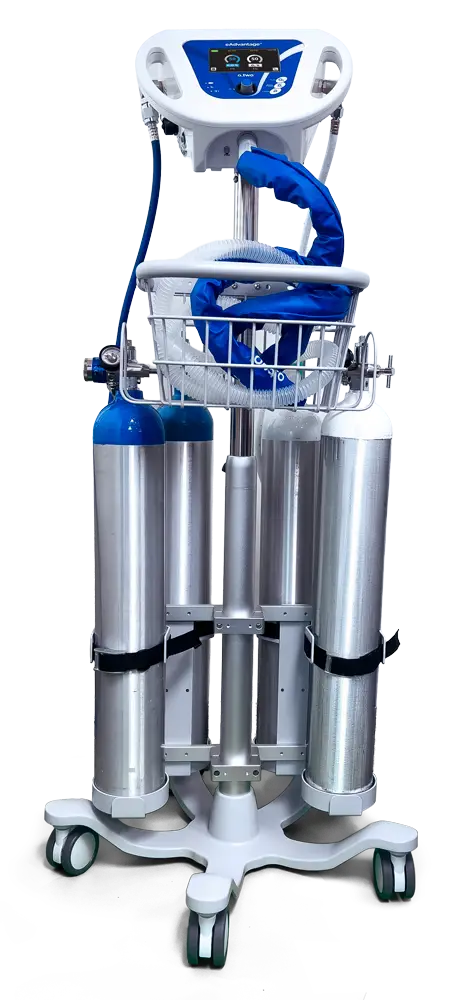

Designed for in-hospital use (ER, Labor and Delivery, Clinics, etc.), the new eAdvantage® provides a variable mixture of nitrous oxide and oxygen, on demand, to a conscious, spontaneously breathing patient for the relief of pain due to childbirth, trauma or other conditions where inhalation analgesia is clinically specified. It only requires the attachment to pressure-regulated medical oxygen and nitrous oxide gas supplies (wall outlet or cylinders), electrical supply or battery, and the attachment of a patient circuit with mouthpiece or facemask and scavenging hose to be ready for use.
Simple controls and abundant safety features make this the ideal device for the accurate delivery of titratable analgesia during labor, trauma, or painful procedures.
eAdvantage® Specifications
Gas Source:
Compressed Oxygen + Nitrous Oxide
Circuit Control Source:
Electronic
Pneumatic circuit Gas consumption (L/min):
0.00
Maximum Flow Rate (L/min):
>260 combined or 160 from oxygen input only
Oxygen concentration (O2 %):
30-100 % continuous adjustment with 5% incremental changes
Trigger sensitivity (cm H2O):
~ -1.0 (non-adjustable)
Input Pressure range (PSI):
50-70
Inhalation resistance (cm H2O):
0 to -6
Exhalation resistance (cm H2O):
0 to 6
Purge Flow rate (L/min):
40 (Oxygen)
Operating temperature (°C):
5 to 40
Storage temperature (°C):
-20 to 60
Device emergency shut OFF:
Below 20 PSI O2 input | Below 25% O2 output w/ 3 consecutive breaths or below 21% O2 output immediately | Sensors and/or valve failure
Battery:
Li-Ion (01CV9200) | Operating time 15-24 hrs
A/C power adapter:
100-250V / 4.74A
Display:
4.3″ Color TFT
Data Storage and Transfer:
Yes
USB:
Yes (for Data Transfer & Software Update)
Live Monitoring:
Alarms and setting only
Parameter Settings:
Control Knob
Lock Key Function:
Yes w/ passcode
Dimensions (mm):
305 x 210 x 130
Weight With & W/O Battery (Kg):
2.80 & 2.20
Relative Humidity
15% to 95%
Alarms (Visual And Audible)
High , Low Or No Input Gas Supply Pressure
Low Battery
Out Of Tolerance Gas Mixture
Device Malfunction
Valves Leak
Return For Service
Audible Alarm Frequency
Audible Silence
eAdvantage® Ordering Information
01EQ3000
eAdvantage® Adjustable Analgesic Gas Mixing and Delivery System with Supply Hoses (c/w DISS O2 and N2O), Single-Use Patient Circuit with Scavenger Hose and Adapter with Mouthpiece
Each
Accessories
01CV8037-CS
Single-Use Patient Circuit with Scavenger Hose, monitoring line and Adapter with Mouthpiece
Case/10
01FV4303-DISS
O-Two 6 Foot (1.85 Meter) O2 Supply Hose with 9/16 DISS Nut and 9/16” DISS Nut Connection
Each
01FV4301-DISS-N2O
O-Two 6 Foot (1.85 Meter) N2O Supply Hose with DISS Gas supply fitting and DISS Device Connection
Each
01CV0104
eAdvantage Power Supply
Each
01CV0106
Power supply cord for power supply
Each
01CV0102-EU
European power supply cord for power supply
Each
02FM4999-CS
O-Two universal mask
Case/12
02FM5207-CS
O-Two Disposable Cuffed Child/Small Adult #3 Mask with Hook Ring
Case/12
02FM5000-CS
O-Two Disposable Cuffed Adult #4 Mask with Hook Ring
Case/12
02FM5001-CS
O-Two Disposable Cuffed Large Adult #5 Mask with Hook Ring
Case/12
02RT1303-CS1
Disposable Mouthpiece (22F)
Case/10
02RT1303
Disposable Mouthpiece (Individually Wrapped) (22M)
Case/50
This product has a two year warranty against manufacturer defects.
